B-series pneumatic actuators

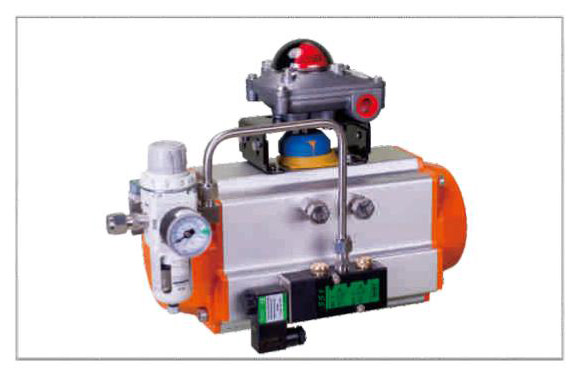

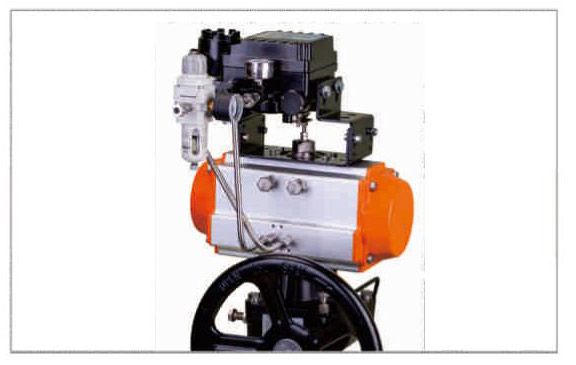

                                       Equipped with solenoid valve, signal return device, and air source filter                              Equipped with electrical locator (adjustable) air source filter and manual operator

Model: Double acting DA type, single acting SR type

Specification: DA/SR50-240, angle: 90 °, customized by customers

Structure: Double piston gear rack transmission

Interface: universal, customized by customers

Cylinder material: aluminum alloy (surface anodized), end cover material: die-cast aluminum alloy (painted)

Sealing materials: nitrile rubber (standard), silicone rubber (low temperature), fluororubber (high temperature), customized by customers

Maximum air supply pressure: 10 bar

Action mode: double acting, single acting (spring return)

Control method: two position cut-off (switch type), adjustable type

Attachment selection: solenoid valve, locator, limit switch, air source processing triplet, manual operator, others
