AW-S series pneumatic actuators

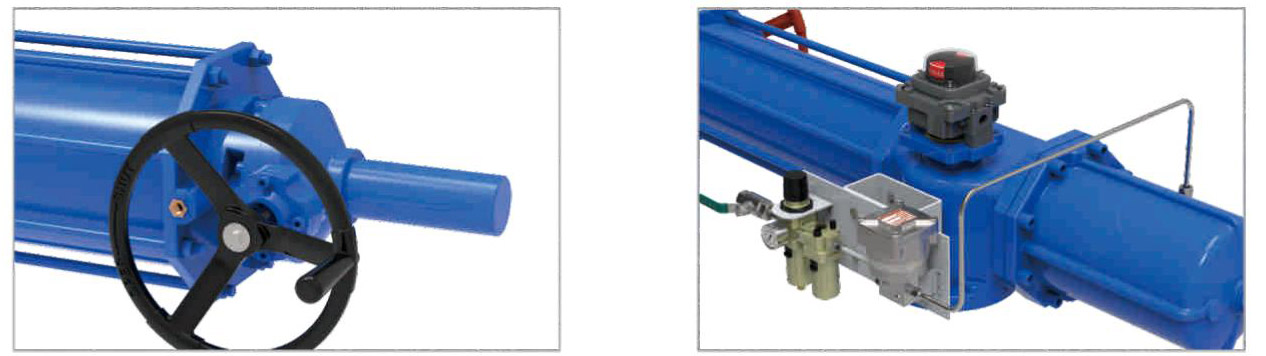

                                                                   Manual operator with bevel gear                                                                         Equipped with solenoid valve, signal return device, and air source filter

Model: Single acting AW-S type

Specifications: AW13S, AW17S, AW20S, AW25S, AW28S, angle: 90 °, customized by customers

Structure: Pulling fork transmission

Interface: universal, customized by customers

Cylinder body material: steel or gray cast iron, end cover material: steel or gray cast iron

Sealing materials: nitrile rubber (standard), silicone rubber (low temperature), fluororubber (high temperature), customized by customers

Maximum air supply pressure: 10 bar

Action mode: single action (spring return)

Control method: two position cut-off (switch type), adjustable type

Attachment selection: solenoid valve, locator, limit switch, air source processing triplet, manual operator, others
